U-Channel Sign Posts

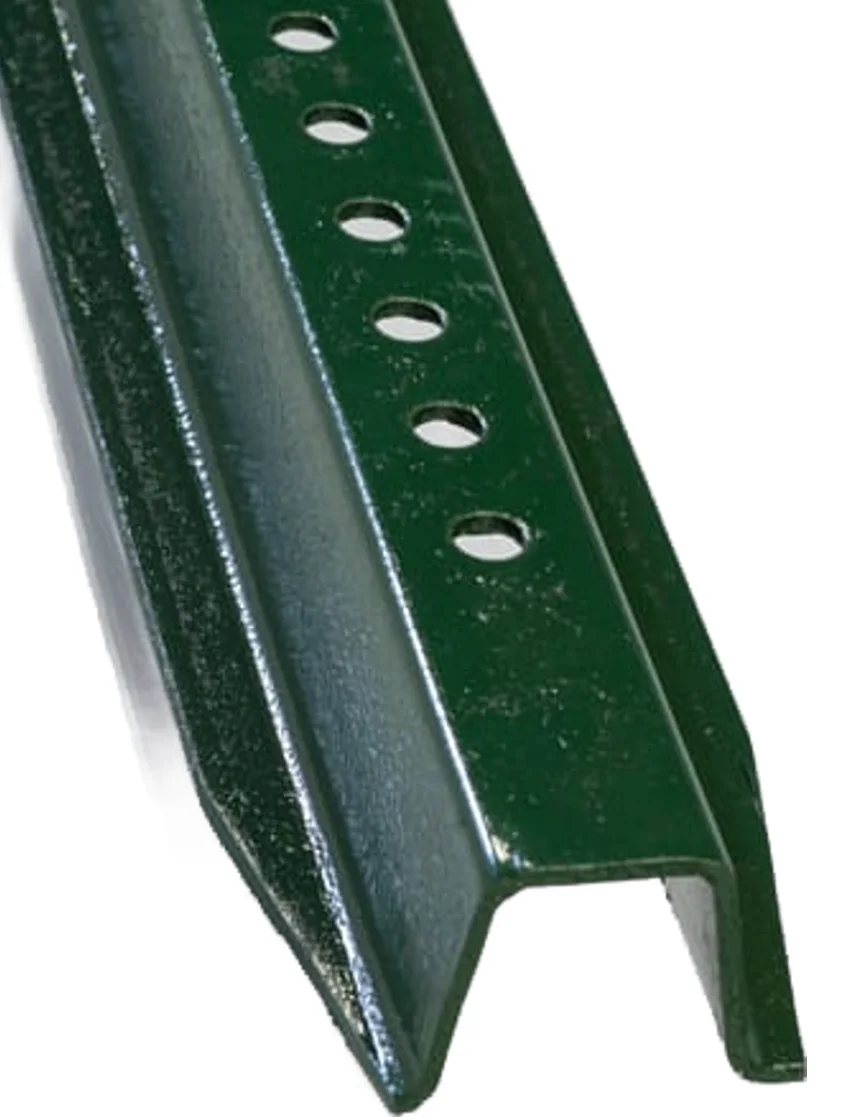

36" U-Channel Sign Post Mounting Anchor "Stub"
Item #:UP-32
MPN #:UP-32
$16.95
$18.45
Quantity 1–4
$16.95
$17.75
Quantity 5–9
$16.95
$16.90
Quantity 10+
Quick Facts:
- Four (4) lengths to choose from - 8', 10', 12' or 3'
- Two finishes to choose from - Painted Highway Green or Galvanized'
- 3/8" diameter holes punched on 1" centers
- Tapered on one end for easy installation
Grimco® U-Channel Post Anchor – 36″
Durable, Secure, FHWA-Ready Mounting for U-Channel Sign Posts
The Grimco U-Channel Post Anchor is a heavy-duty, 36-inch galvanized steel foundation engineered for stable, long-lasting installations of standard U-Channel sign posts. Designed to simplify mounting and improve impact safety, this anchor eliminates the need for concrete while ensuring a secure fit.
Key Features
- Perfect fit for U-Channel sign posts: Compatible with standard U-Channel posts, ensuring a snug and vibration-resistant fit for reliable sign stability.
- Impact-friendly break-away design: Engineered to minimize vehicle and infrastructure damage upon impact when used with break-away hardware.
- Pre-drilled mounting holes: Strategically placed holes allow quick and precise bolt-through connections for sign posts.
- Fast, simple installation: Drive anchor into the ground—no concrete required. Insert U-Channel post and secure with 'Break-Away' U-Channel hardware (sold separately).
Applications
- Traffic-control signage
- Parking and regulatory signs
- Private property and commercial signage
- Municipal and DOT installations requiring break-away safety
Technical Specifications
| Specification | Value |
|---|---|
| Length | 36″ (3 ft) |
| Compatible Posts | U-Channel sign posts |
| Material | 12-gauge steel |
| Installation | Drive into soil; insert U-Channel post; bolt through pre-drilled hole(s) |
Why Choose Grimco U-Channel Post Anchors?
Grimco’s U-Channel Anchor offers a rugged, code-compliant solution that pairs perfectly with standard U-Channel sign posts. With no need for concrete and included bolt hardware, you get a cost-effective, ready-to-install foundation built for longevity and safety.
Installation Tips
- Drive the anchor into undisturbed soil until only the top mounting holes remain exposed.
- Insert your U-Channel sign post into the anchor sleeve.
- Secure using the provided bolt and nut through the designated mounting hole.
- For added stability, use an additional bolt lower on the post if desired.
